Bring home theater-worthy Dolby Atmos® & DTS:X™ sound
Give your home entertainment system a cinematic upgrade with the STR-DH790 7.2ch AV receiver. Experience the same all-encompassing surround sound you get in movie theaters at home with Dolby Atmos and DTS:X support. Plus, superior picture quality to match with 4K HDR pass-through.
Features
- 145W per channel power output
- Dolby Atmos and DTS:X compatible
- 4K HDR pass through and Dolby Vision for visual clarity
Key Features
Constructed for precision
A reinforced frame and beam chassis design reduces external speaker sound pressure for more focused, powerful sound.
Large capacity power transformer built for clarity
Care and attention to the highest quality audio starts with the power transformer.
A metal framework protects the circuits
The metal framework and heat sink bracket shields the circuits from sound pressure and radiation, for high-rigidity and clearer sound quality.
Your favourite radio with an FM tuner
The STR-DH790 has an FM tuner with 30 digital preset radio stations, with auto tuning and direct tuning available.
Smooth control

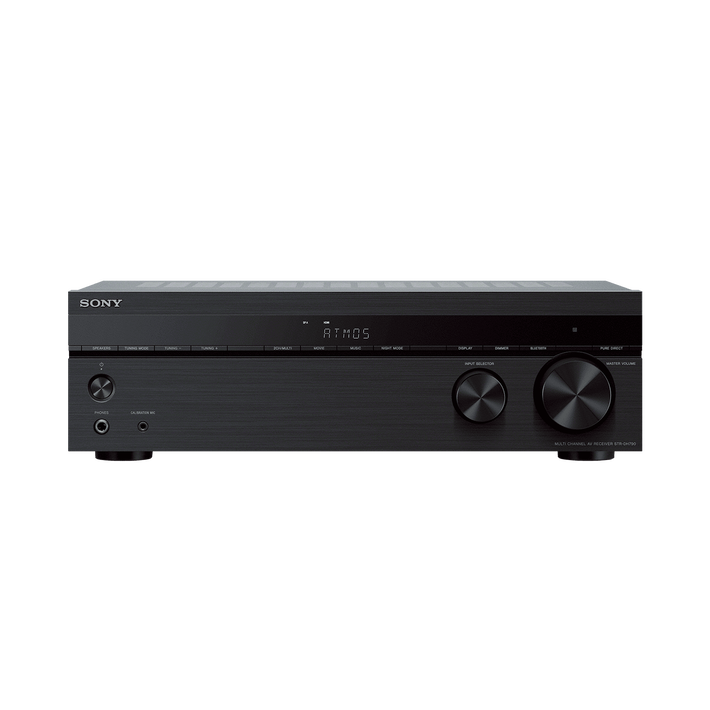

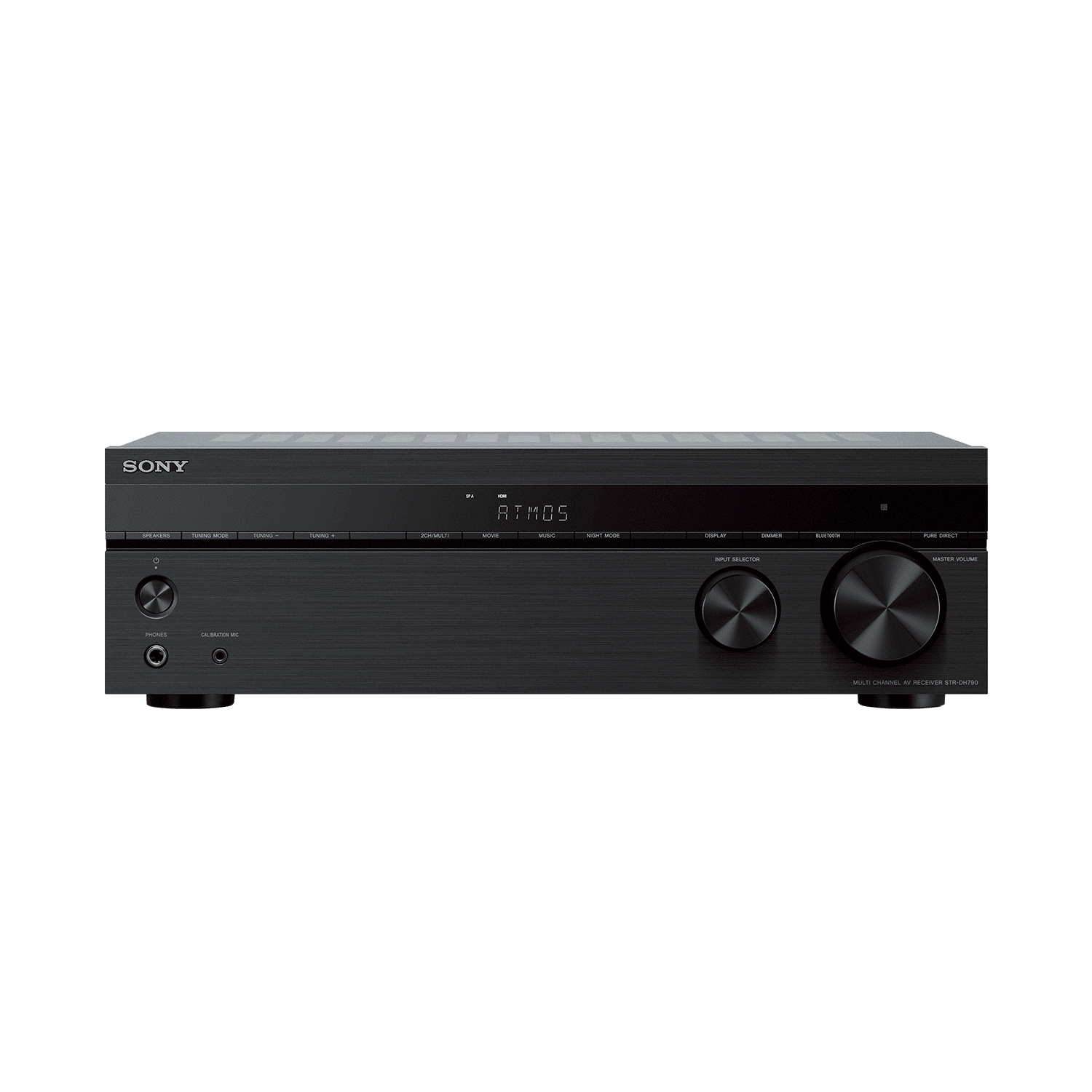

The sleek, understated control panel will blend seamlessly with any decor.
Get lost in the action with Dolby Atmos
Dolby Atmos delivers breath-taking realism with 360º surround sound, by accurately positioning sound from every angle in your environment - even from above. The result is rich audio that completely envelops you.
Lifelike sound whatever the setup with DTS:X
DTS:X decoding delivers multi-dimensional surround sound that adapts to your speaker configuration in real time. Sound is positioned precisely around and above you, thanks to object-based audio decoding.
Immersive 5.1.2ch sound from every angle
Put yourself at the heart of the action with an immersive 5.1.2 channel surround speaker system, delivering lifelike audio from every angle - even above.
Space-optimised 7.1ch cinematic sound
Get the real big screen experience with a fully-fledged 7.1 channel surround speaker system. The ideal way to close up any gaps in your sound space - even in bigger rooms.
All round virtual surround with S-Force PRO
Ideal for smaller rooms, S-Force PRO front surround delivers a virtual surround acoustic field using only two speakers.
Superior audio with Advanced D.C.A.C
If you're working with different combinations of speakers, our seamless auto calibration technology will have them all delivering the same high-quality sound. Automatic Phase Matching aligns the phase characteristics of your speakers to the front left and right speaker channels, so that all channels work perfectly together delivering a more effective surround sound experience.
A clearer picture with High Dynamic Range
By supporting High Dynamic Range (HDR) signal pass-through, you can enjoy the incredible jump in contrast and brightness it brings - and the additional shadow detail and highlights further enhance picture detail and brings colour to life. Latest HDR standards such as HDR10, HLG (Hybrid Log-Gamma) and Dolby Vision are supported.
Consistently stunning 4K quality
Maintain 4K quality from source to screen - the 4K pass-through feature allows data to pass through the receiver without compromising image quality and is HDCP 2.2 compatible.
Expertly designed to prevent overheating
The heat sink's specially designed fins maximise air intake, keeping the amplifier circuit cool and protecting it against unwanted sound pressure.
Control made easy with a graphic user interface
It's easy to navigate your receiver's settings thanks to an intuitive home menu. Control what you watch, identify which devices are connected and choose how you want to listen with pre-set sound modes.
Get connected

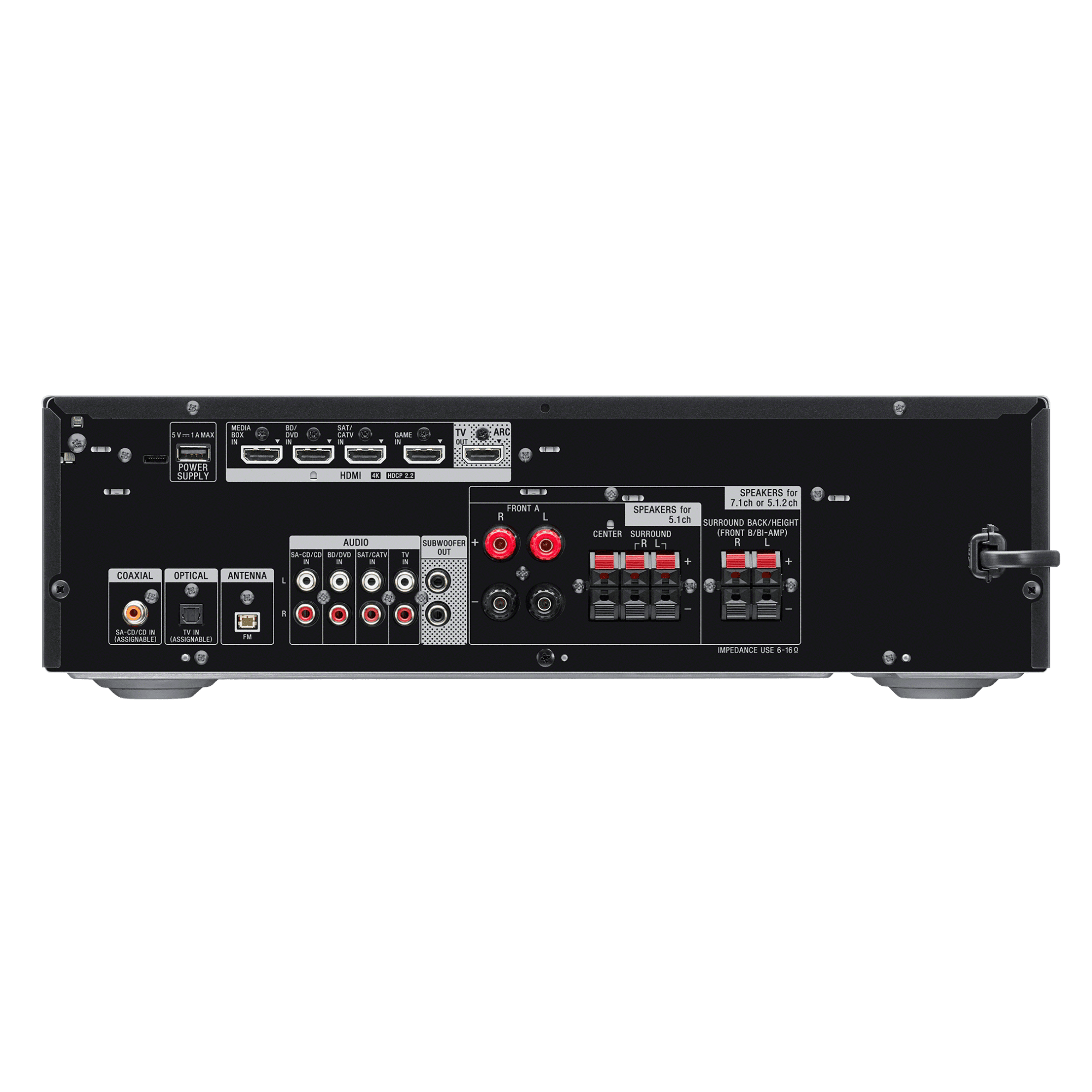

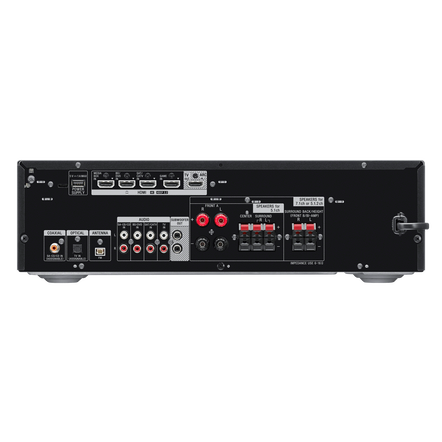

Just plug in and press play. With four HDMI inputs and one output, optical/coaxial digital and analogue audio connections, you can connect your UHD Blu-ray Disc player, TV and games console easily.
Streamlined slim design
With a robust, space-saving design, the receiver can easily fit into your media unit. Plus, a rigid chassis reduces vibration to help maintain signal fidelity.
Powerful 3 DSPs
3 powerful digital signal processors support the latest sound formats like Dolby Atmos/DTS:X, ensuring the highest accuracy in signal decoding.
Power amplifier for minimal distortion
The power amplifier uses a glass-epoxy circuit board for reduced vibration and distortion, giving clear, high power from each of the discrete amplifiers.
Smarter Bluetooth connectivity
Not only can you connect to the STR-DH790 through Bluetooth and play all your favourite tracks, but with Bluetooth Standby, you can turn your receiver on straight from your paired smartphone or tablet.
The Way The Artists Truly Intended
Enjoy the subtlest nuances of studio-quality sound in higher-than-CD quality with High-Resolution Audio. Passion for music unites every component from signal to speaker, so it feels like the artist is performing right in front of you.
DSD decoding
Co-developed for High-Resolution Audio by Sony and Phillips, the companies behind original CD format, DSD offers a revolutionary way of capturing and playing back audio. Its sampling frequency is 64x that of CD.
Specifications
Amplifier
-
- Amplifier Speak Impedence 6 - 16 ohms
- Power Output 145W (6ohms, 1kHz, 1ch THD 0.9 %)
- Number of Amp. Channels 7
Calibration
-
- Automatic Phase Matching Advanced D.C.A.C., Automatic Phase Matching, Calibration Mic (Mono)
Decoding Formats
-
- Decoding Format for HDMI DSD, Dolby Atmos, Dolby Digital, Dolby Dual Mono, DTS: X, DTS-HD Master Audio, DTS HD High Resolution Audio, DTS, DTS-ES (Matrix6.1 / Discrete6.1), DTS 96 / 24
General Features
-
- GUI (Graphical User Interface) Yes
- Auto Standby Yes
Interface
-

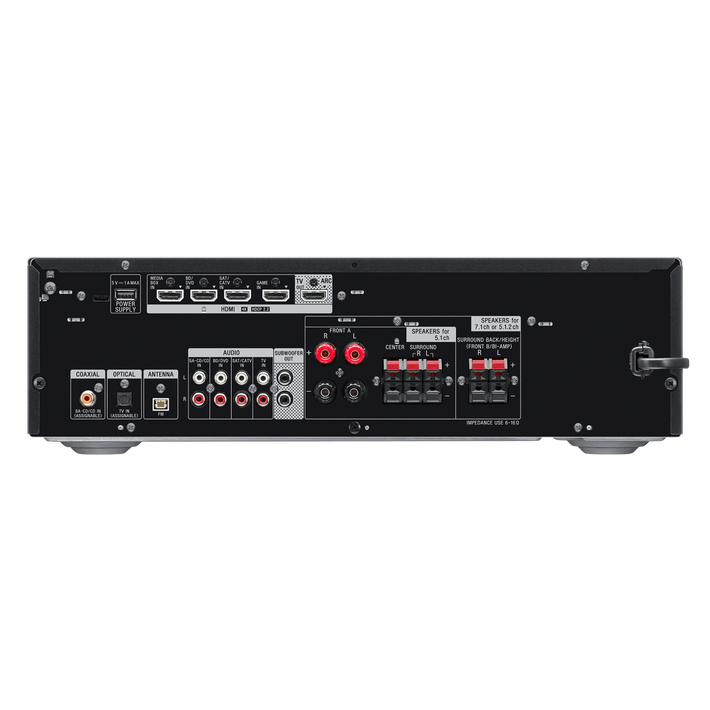

- Input and Output Terminals Audio Input Opt (1), Audio Input Coax (1), Analog Audio Input (4), Pre Out Subwoofer (2), Headphone Output (1), USB (for power supply only)
Networking
-
- Network features Bluetooth Receiver
Channels
-
- Number of Decodable Channels 5.1.2 ch
Power
-
- Power Requirement AC 230V 50Hz
Dimensions
-

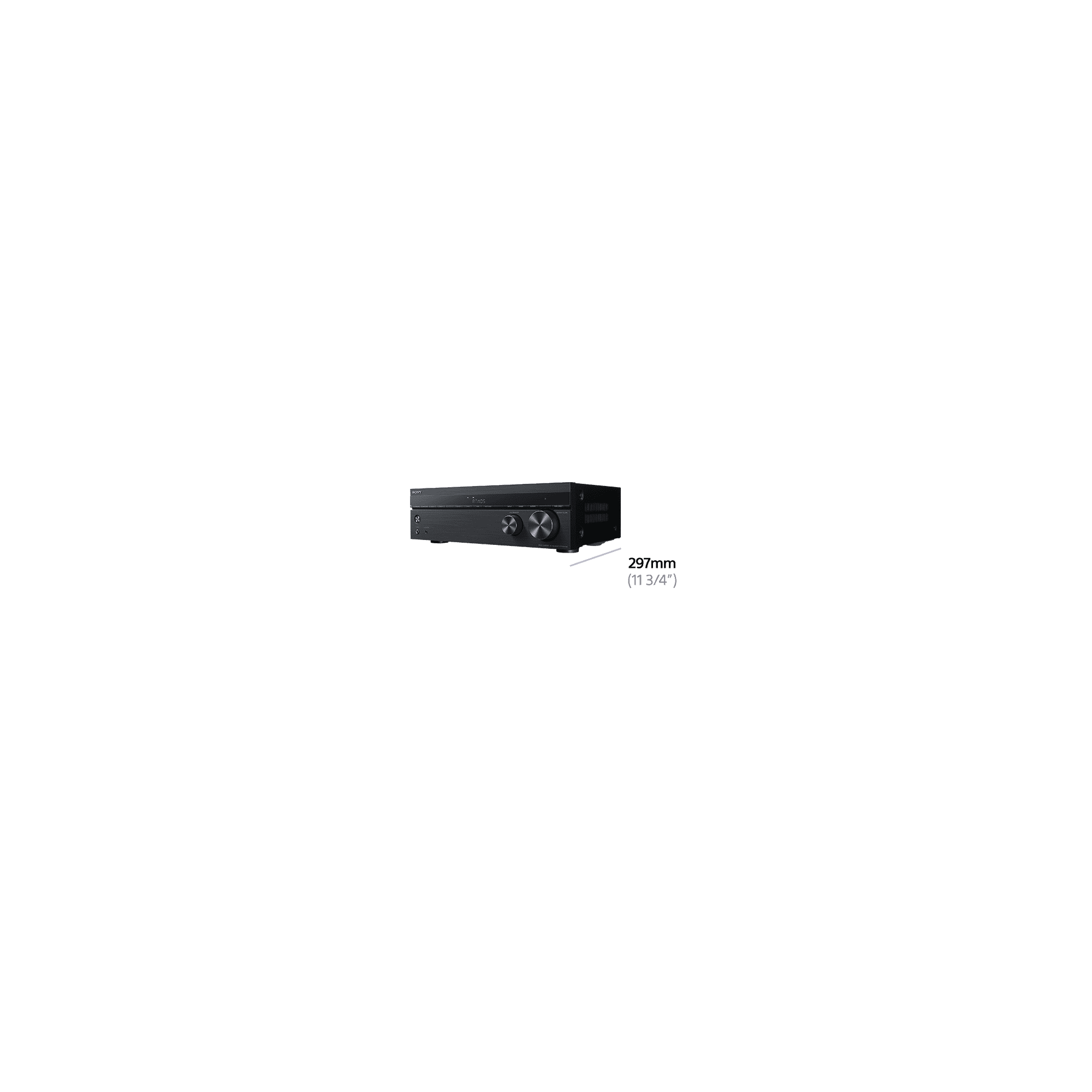

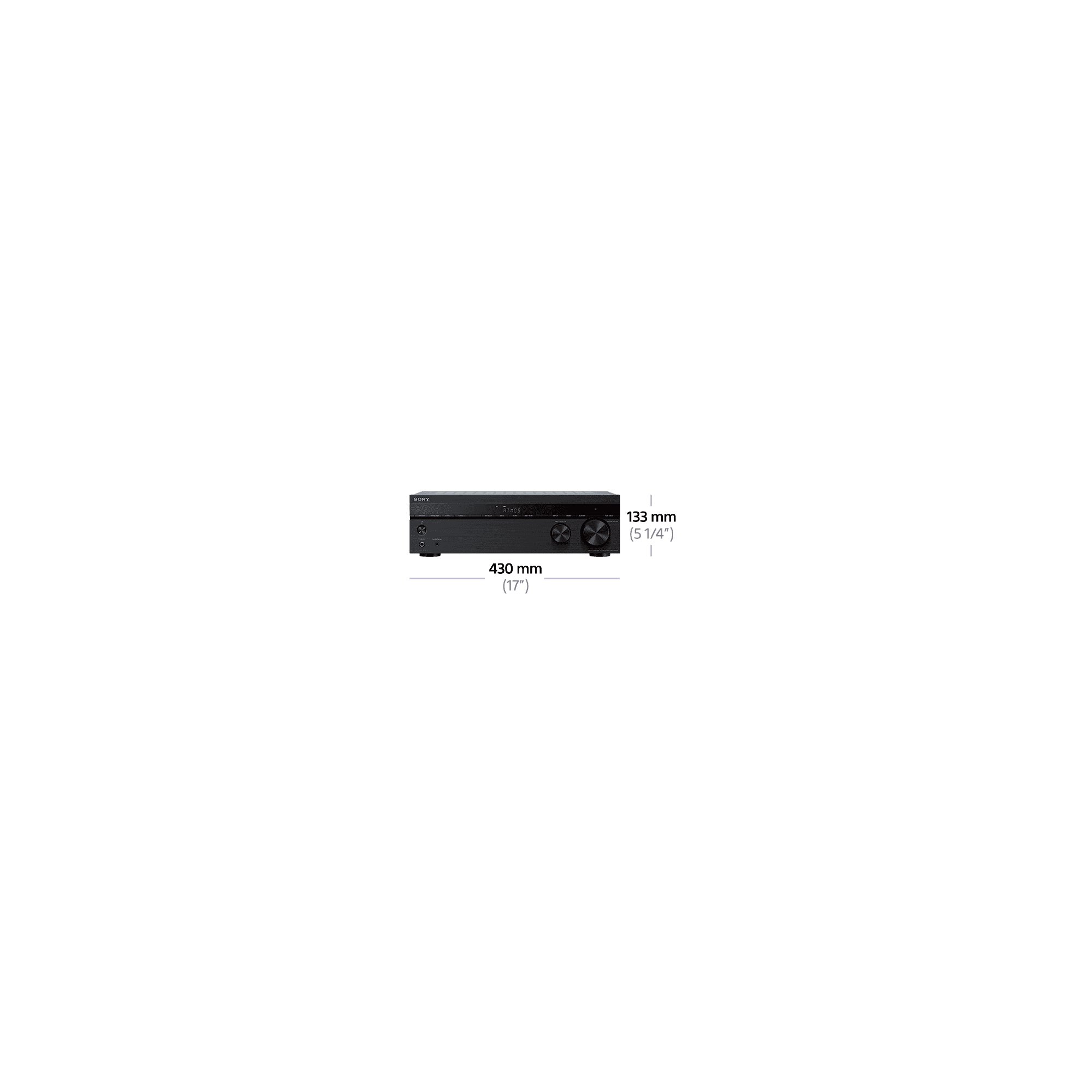

- Dimensions (W x H x D) 430 x 133 x 297 mm
- Weight 7.4kg
Sound
-
- Sound Field 2ch Stereo,Direct,Multi Ch Stereo,Dolby Surround,Neural: X,Front Surround,Audio Enhancer,Headphone 2ch
Speakers
-
- Speaker Output Terminals Front A,Center,Surround,Surround Back,Height (Common with Surround Back) ,Front B (Common with Surround Back) ,Bi-AMP (Common with Surround Back)
Tuner
-
- Preset Channel (Sirius/XM/FM/AM) TTL30 (30 / -)
- FM/AM Yes / No
- RDS Yes
Video Features
-
- 3D over HDMI Yes
- Audio Return Channel Yes
- HDR (High Dynamic Range) Yes (HDR10, HLG, Dolby Vision Compatible)
- BRAVIA® SYNC™ (CEC Control) Yes
- A/V SYNC Yes (Variable)
- HDMI® Pass Through Yes
- 4K 60p 4:4:4 Support Yes
Availability
-
- Released 2018
