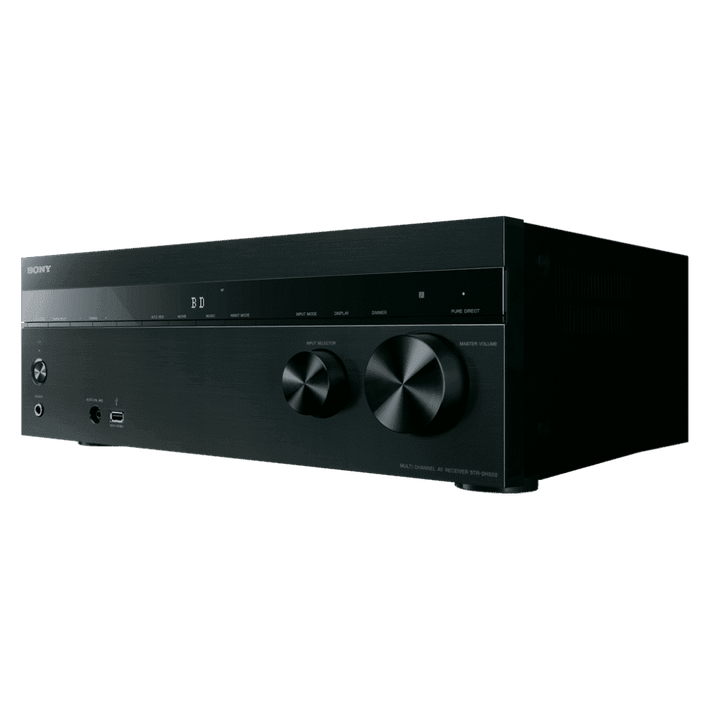

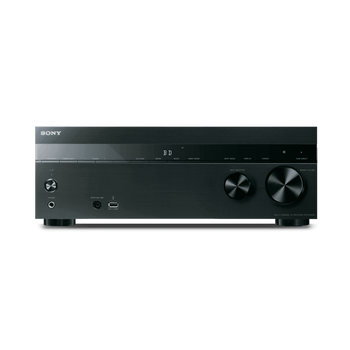

5.2ch AV Receiver

Specifications

• Decoding Format

  • Dolby Dual MoNO YES
  • 96k/24Bit PCM YES
  • DTS HD/DolbyTruHD/Dolby Digital+ YES/YES/YES
  • Dolby Digital/DTS YES/YES
  • Dolby Digital EX YES
  • DTS-ES (MATRIX6.1/DISCRETE6.1) YES
  • DTS 96/24 YES
  • Dolby Prologic YES
  • Dolby Prologic II YES

• Auto Speaker Calibration

  • DCAC (Digital Cinema Auto Calibration) YES

• Size & Weight

  • Dimensions (W x H x D) 430 x 156 x 329.4 mm
  • Weight 7.8 Kg

• General Features

  • GUI (Graphical User Interface) YES
  • Auto Standby YES

• Amplifier

  • Number of Amp. Channels 5ch
  • Sound Field Program (2ch) YES
  • Sound Field Program (Headphone) YES
  • Sound Field Program (A.F.D) YES
  • Portable Audio Enhancer YES
  • HD-D.C.S. (Digital Cinema Sound) YES
  • Night Mode YES

• Video Features

  • 4K Output YES
  • 1080p/24p YES
  • Deep Color YES
  • x.v.Color (xvYCC) YES
  • BRAVIA SYNC (CEC Control) YES (One-Touch Play, System Audio Control, System Power Off)
  • HDMI Pass Through YES
  • 3D over HDMI YES
  • Audio Return Channel YES
  • A/V SYNC YES (Fixed)
  • Assignable HDMI Video IN YES

• Tuner Features

  • RDS YES
  • Preset Channel (Sirius/XM/FM/AM) TTL60 (-/-/30/30)

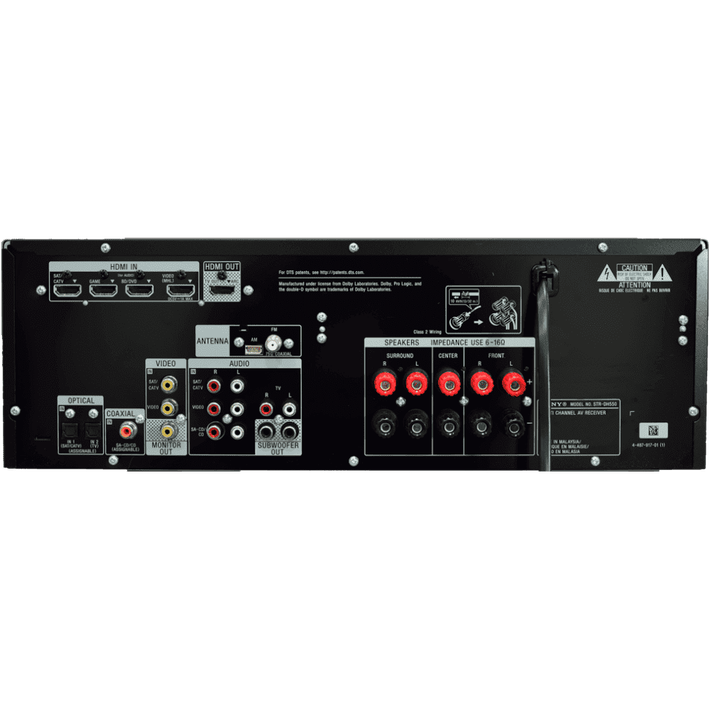

• Interface

  • Input and Output Terminals HDMI Video In/Out (4/1);Composite Video Input (2);Composite Monitor Out (1);Opt Audio Input (2);Coax. Audio Input (1);Analog Audio Input (4);Headphone Output;USB (1 Front:iPhone/WM);MHL (1 Rear)

• Number of Amp. Channels

  • Number of Amp. Channels 5ch

• Input and Output Terminals

  • Input and Output Terminals HDMI Video In/Out (4/1);Composite Video Input (2);Composite Monitor Out (1);Opt Audio Input (2);Coax. Audio Input (1);Analog Audio Input (4);Headphone Output;USB (1 Front:iPhone/WM);MHL (1 Rear)

• Weight

  • Weight 7.8 Kg
